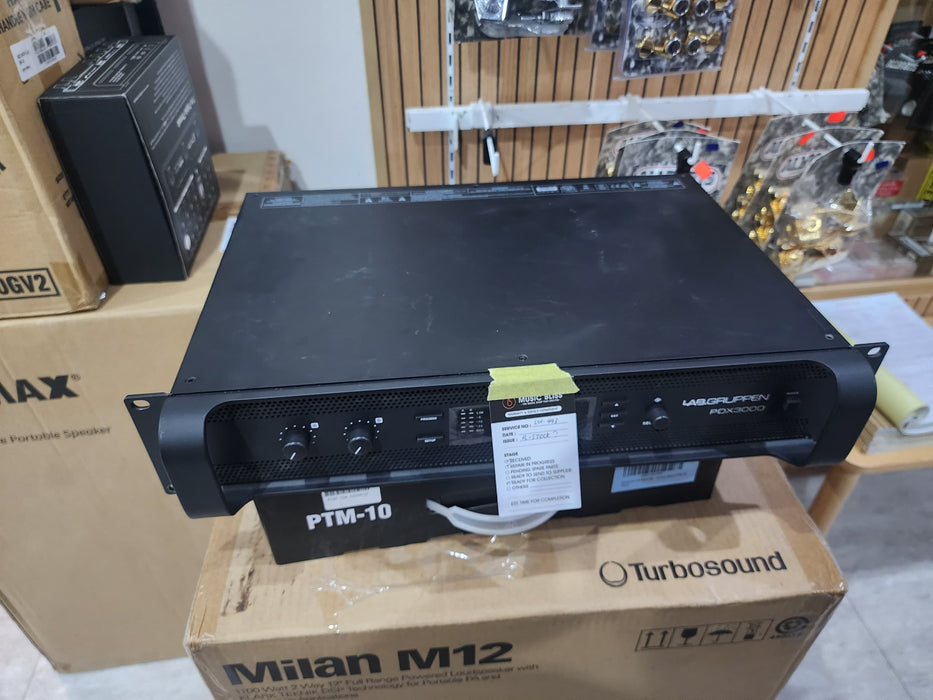

B-STOCK (BS-201) Lab Gruppen PDX3000 Power Amplifier with DSP

Tailor-made for a wide range of live sound applications, the Lab Gruppen PDX3000 punches well above its weight. This robust 2-channel unit employs a cutting-edge IDEEA Class D amplifier that's meticulously matched to its 3000-watt output for class-leading performance and efficiency. You also get pre-configured settings for various speaker arrangements, in addition to an intuitive front-panel user interface for easy setup and monitoring. At Music Bliss, we appreciate the PDX3000's onboard DSP — it not only supplies you with a crossover, parametric EQ, delay, limiter, dynamic EQ, and digital mixing, it also permits remote control via PDX Controller software. The PDX3000 includes an ultra-efficient switch mode power supply, as well as comprehensive circuit protection against shorts and overloads and a temperature-controlled fan for effective cooling. You also get a built-in limiter to maximize your output and safeguard your drivers against excessive levels, plus front panel locking functionality to prevent unwanted tampering. Finally, the PDX3000 includes a rugged and lightweight rackmount housing, balanced XLR and TRS inputs, and roadworthy speakON outputs.

FEATURES

• 3000W IDEEA Class D amplifier is meticulously matched to its rated output
• Pre-configured settings for various speaker arrangements
• Intuitive front-panel user interface facilitates easy setup and monitoring
• Onboard DSP supplies a configurable crossover, parametric EQ, delay, limiter, dynamic EQ, and digital mixing
• Remote control via a PC running PDX Controller software
• Ultra-efficient switch mode power supply
• Comprehensive circuit protection against shorts and DC/thermal overloads
• Temperature-controlled fan facilitates effective cooling
• Built-in limiter maximizes output and safeguards drivers against excessive levels
• Front panel locking functionality prevents unwanted tampering
• Rugged, lightweight rackmount housing
• Balanced XLR and TRS inputs and roadworthy speakON outputs

SPECIFICATIONS

• Number of Channels:2
• Power Class:Class D
• Watts/Side @ 8 ohms:800W
• Watts/Side @ 4 ohms:1500W
• Watts/Side @ 2 ohms:1000W
• Watts Bridged:3000W @ 8 ohms
• Inputs:2 x XLR, 2 x 1/4"
• Outputs:2 x NLT4 speakON
• Data I/O:1 x USB Type B (remote DSP control)
• Cooling System:Fan
• DSP:Yes
• Filters:Yes
• Frequency Response:10Hz-20kHz
• THD:< 0.1%
• Rack Spaces:2U
• Height:3.7"
• Depth:12.8"
• Width:19"
• Weight:14.3 lbs.
