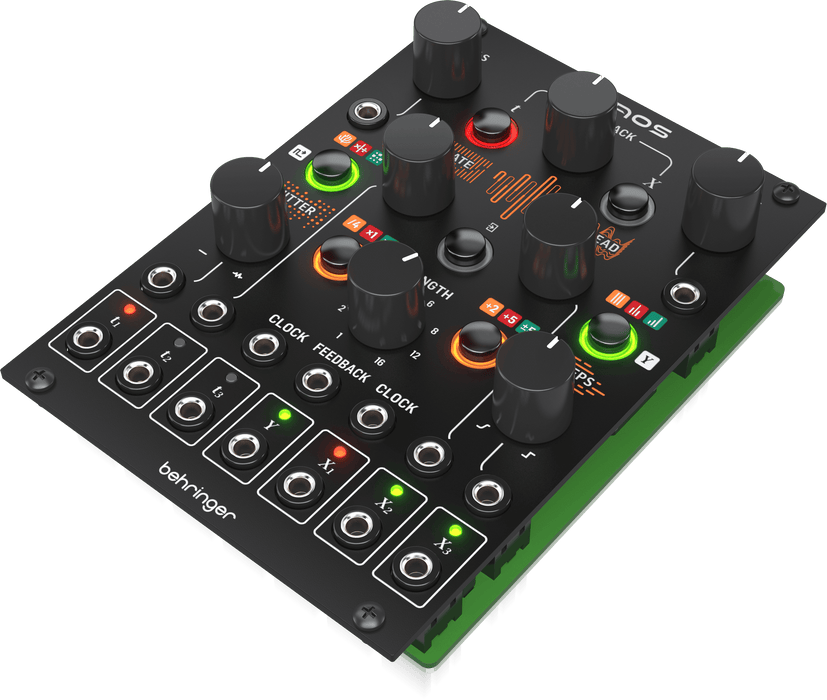

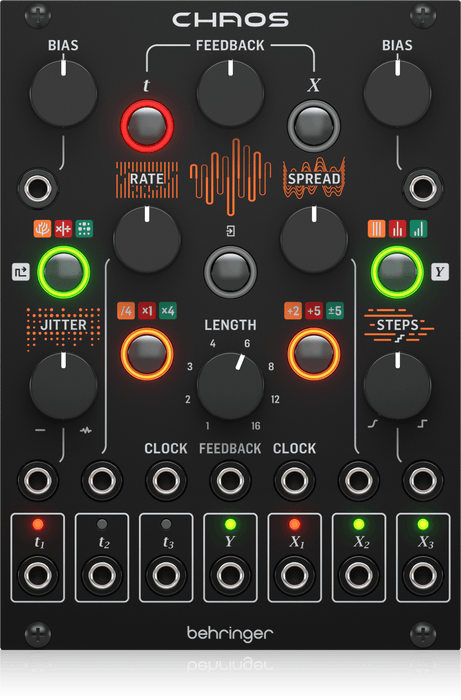

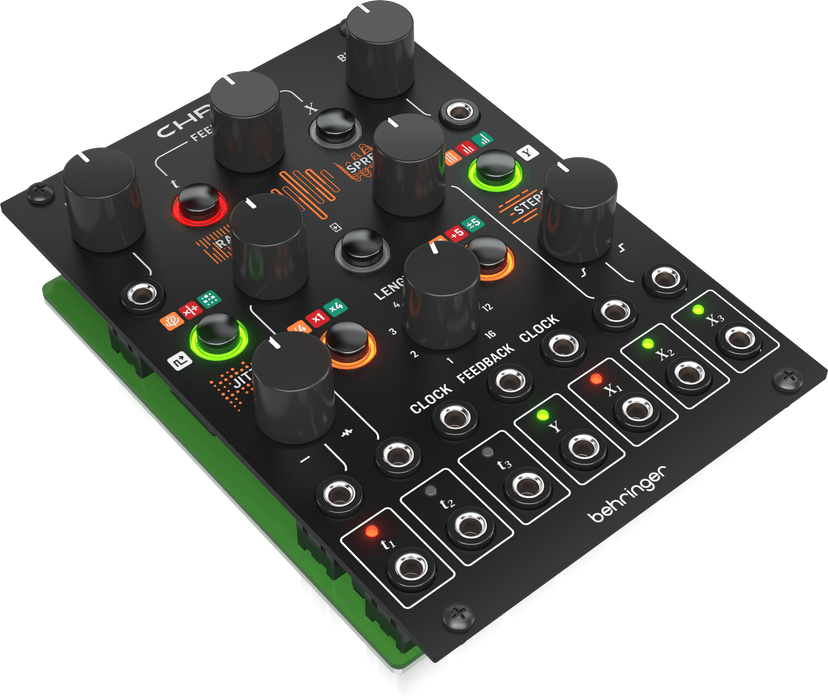

Behringer Chaos Analog Random Sampler Eurorack Module

Among the pantheon of possibilities available with Eurorack synthesis, randomization tools are arguably the most under-utilized. Behringer’s Chaos module seeks to harness its namesake force to introduce infinite manners of dynamic musicality to your arrangement, and Music Bliss synthesists wholeheartedly agree: they’ve succeeded. This 16HP analog powerhouse features two sequentially operating sub-sections: one that generates random gates tethered to a master clock and a second that produces random voltages clocked to the previous section. Each section’s trio of outputs includes a multitude of dedicated operating modes and multiplicative functions alongside a master feedback control to supplement your sound with immense textures. The best part? Virtually any module is fair game to connect, allowing for infinite possibilities to reimagine your rig.

FEATURES

• 16HP module features analog architecture for premium operation and innovative sampling
• Dedicated sub-sections are designed to work in sequence to produce an endless suite of rhythmic and melodic randomization
• Color-coded operating modes unique to each sub-section balance chaos with creative guardrails for inspiring production and performance opportunities
• Master clock dictates gate-triggering behavior of all 3 “t” outputs while each respective “X” output generates random voltages in relation to the activated “t” output
• Interrelationship of t and X outputs enables complex synchronization opportunities across rhythmic and melodic values
• Jitter control “warps” the clock to introduce naturality via human-like imperfections
• Steps determine voltage-value behaviors, from smoothly distinguished to chromatic, major, major-third, and octave-sized intervals
• Length control attenuates timing and scale values for t and X sub-sections, respectively, with color-coded modes unique to the length values of the t and X output behaviors
• Audio output pair includes a primary out and a dynamic variant to ensure complex sound-shaping possibilities through nuanced layering
• Extensive CV control includes both Bias controls, both clock values, Jitter, Steps, and Feedback, allowing for deeply exploratory and inspiring interoperative functionality

SPECIFICATIONS

• Type:Random Sample Module
• Analog/Digital:Analog
• Sampling:Yes
• Depth:3" (75mm)
• HP Size:16HP
• Power Usage:+12V/70mA, -12V/40mA
• Power Supply:Requires Eurorack case and power supply
• Weight:7.2 lbs (160g)
