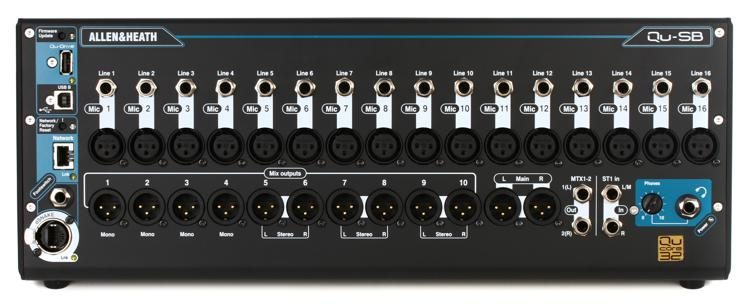

Allen & Heath Qu-SB Portable Digital Mixer (QuSB)

From live music performances to conference audio and panel discussions, the Allen & Heath Qu-SB is a powerful, portable digital mixer. It offers 16 mic/line inputs, and can be expanded to 32 channels via Allen & Heath Audio Racks (not included). Use the Qu-Pad iPad app to access all mixer functions, from channel faders and metering, to effects racks, scene management, and USB audio control. Performers onstage can use the Qu-You app for iOS and Android to control their own monitor mixes. And with effects derived from the iLive console series, mic presets for leading microphone models, built-in multi-track USB recording and much more, the Allen & Heath Qu-SB is an amazingly versatile rackmount mixer.

VIDEO

FEATURES

• 16-channel portable digital mixer
• 16 AnalogiQ mic preamps with total-recall capability
• Expandable up to 32-in/24-out using dSNAKE AudioRacks (not included)
• Supports up to 11 monitor mixes (4 mono, 7 stereo)
• Four effects engines drive four dedicated effects Sends/Returns
• 4 Mute Groups and 4 DCA Groups help you manage larger mixing tasks
• Qu-Pad iPad App for all live mixing controls
• Qu-You iPhone App for personal monitoring
• Qu-Drive direct Multitrack recording and playback on USB drives
• Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
• ProFactory Mic Presets provides EQ presets for popular industry-standard microphones
• Automatic Mic Mixer manages mic levels automatically, perfect for conferences, meetings and panel discussions

SPECIFICATIONS

• Type:18 x 14 digital mixer interface for iPad
• Channels:16
• Inputs - Mic Preamps:16 x XLR
• Phantom Power:Yes
• Inputs - Line:16 x 1/4", 2 x 1/4" (stereo paired)
• Outputs - Main:2 x XLR (main out)
• Outputs - Other:2 x 1/4" (stereo matrix out), 4 x XLR (mono mix out), 6 x XLR (3 stereo mix outs)
• Aux Sends:11 monitor mixes (4 mono, 7 stereo), 4 x dedicated FX sends/returns
• Busses/Groups:4 x stereo groups, 4 x DCA groups, 4 x mute groups
• Data I/O:2 x Ethernet (Cat5 dSnake port, Network link)
• USB:1 x Type B (audio interface), 1 x Type A (direct recording/playback)
• Computer Connectivity:USB (32 x 32)
• I/O Expansion Slots:Expansion via dSnake for additional inputs and networking
• Headphones:1 x 1/4"
• EQ Bands:4-band parametric, Graphic
• Effects:4 x FX engines (reverbs, delays, double tracking, chorus, symphonic, phaser, flanger)
• Signal Processing:Compression, Gates, Filters
• Features:Spectrogram feedback elimination, RTA with peak band indication
• DAW Control:DAW MIDI control
• Software:Qu-Pad iPad app, iLive FX library, iPhone/Android personal monitor app
• Rackmountable:Yes (kit sold separately)
• Height:6.4"
• Depth:6.9"
• Width:17.2"
• Weight:9.9 lbs.
