ART MX225 5-Channel Zone Distribution Mixer

Item ID: MB-MX225
RM1,000.00
RM830.00
On Sale
Instant Savings: RM170.00 ( 0% GST)

Availability: Call For Status Check
Contacts Us To Check the Stock Status.
+6016-3111286

Estimated Shipping Fees - calculating...

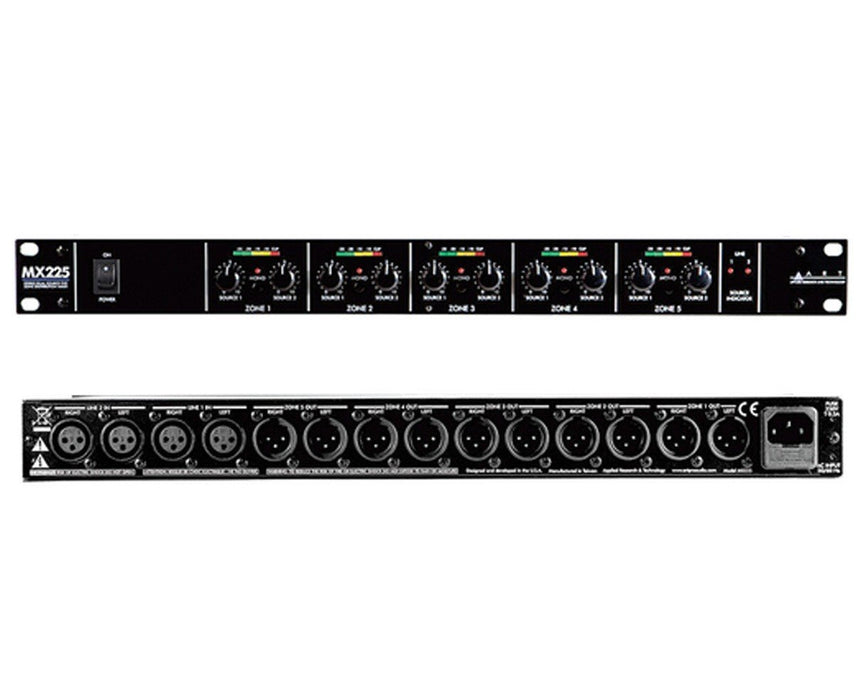

ART MX225 Zone Distribution Mixer for Remote Volume Control of Multiple Amplifiers or Powered Speakers


The MX225 is designed for remote volume control of multiple amplifiers or powered speakers in a distributed audio system. Two stereo sources are available to each of five output zones. Each source input pair handles separate left and right balanced line level signals. Each output zone features independent level control from inputs 1 and 2stereo/mono selector with mono indicatorLED level meteringand left and right balanced line level zone outputs. All audio connections are balanced XLR. The built in power supply and single high 19" rack mount format allows for easy installation and reliable operation.


FEATURES
  • Left and right balanced Source 1 and 2 Inputsaccepts stereo or mono signal sources
  • Source 1 and 2 input channels are internally routed to all five Zone channels
  • Five Zone channels each feature Source 1 and 2 level controls and left and right balanced output XLR connectors
  • Stereo/Mono selector on each zone sums left and right into Mono mode when engaged
  • Mono indicator LED on each zone channel indicates that mono has been selected
  • Five LED level metering (-25-20-15-10Clip) on each zone channel indicate signal activity for each zone
  • Source 1 and 2 indicator LEDs show you when signal is present in each source channel

SPECIFICATIONS¹
Input Connections XLR-F balanced (x4)
Output Connections XLR-M balanced (x10)
Input Impedance 47k
Output Impedance 200
Total Harmonic Distortion .05% Typical
Signal to Noise Ratio > 90dB typical
Maximum Input Level +20dBu
Maximum Output Level +24dBu balanced
Maximum Gain +6DB
Power Requirements USA - 105 to 125 VAC / 50-60Hz15 W typical
