ART PDB4 1U Rackmountable 4-Channel Passive DI Box

Item ID: MB-PDB4
RM547.00
RM452.00
On Sale
Instant Savings: RM95.00 ( 0% GST)

Availability: Call For Status Check
Contacts Us To Check the Stock Status.
+6016-3111286

Estimated Shipping Fees - calculating...

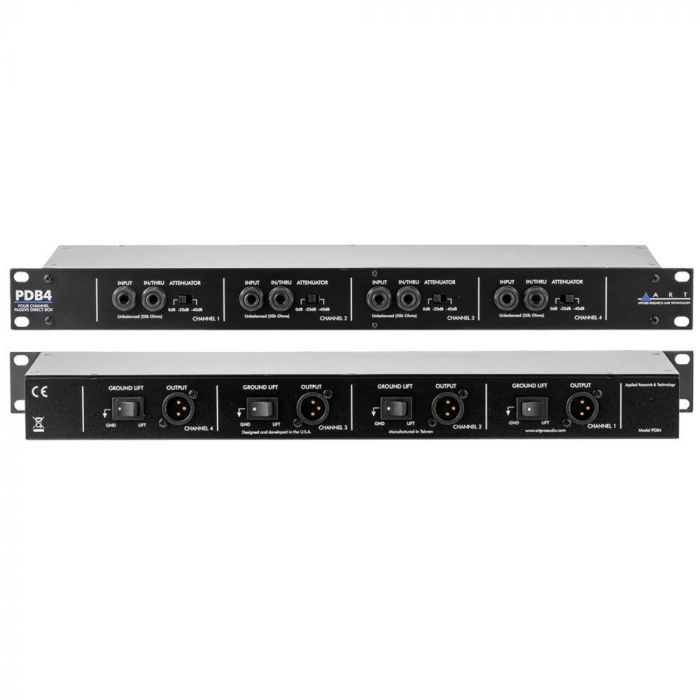

ART PDB4 1U Rackmountable 4-Channel Passive DI Box


The PDB4 is a four channel passive direct box that features four quality fully transformer isolated direct boxes in a 1U 19-inch rack mount chassis. Inputs and outputs of each of the four channels are isolated to maximize channel separation. Transformer isolation on each output helps to eliminate system ground loops.

It is a rock solidroadworthy interface for connecting outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced audio products. The PDB4 also allows connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.


FEATURES
  • Four Fully Isolated Channels
  • Switchable Input Attenuation
    (0dB-20dB -40dB)
  • 50k ohm Instrument/Line Input
  • 50k ohm Parallel Link Jack
  • 600 ohm XLR Output Jack
  • Switchable Ground Lift
  • 1U 19-inch Chassis

SPECIFICATIONS
Frequency Response 10 Hz - 50 kHz +/- 0.5dB @ +4dBu
Input Connections ¼-inch TS unbalanced
Output Connections XLR male balanced
Input Impedance 50k
Output Impedance 600
Ground Lift Switchable
Input Attenuation Switchable (0dB-20dB-40dB)
Chassis Type All steel black finish
Power Requirements None Totally Passive
