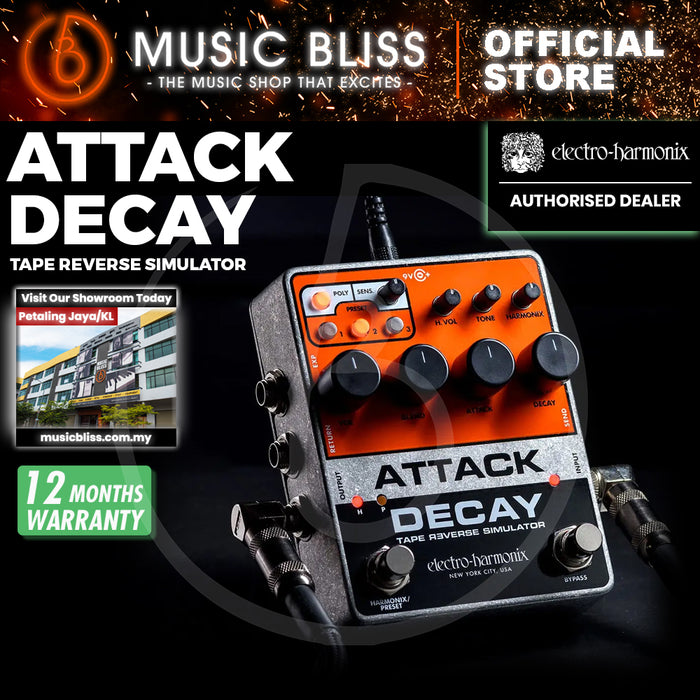

Electro Harmonix Attack Decay Tape Reverse Simulator Pedal (Electro-Harmonix / EHX)

Originally introduced back in 1980, the Electro-Harmonix Attack Decay pedal gives you synthesizer-like control over the attack and decay of the notes you play. Said another way, Attack Decay can create tape reverse effects, slow volume swells, notes that cut off abruptly, and even bowed-instrument effects. And unlike the original effect, you can engage poly mode to affect each note you play independently. Engage the built-in fuzz circuit for harmonic excitement. Place other effects like reverbs and pitch shifters in the send/return loop to affect just those signals. Especially if you’re into ambient or textural guitar techniques, there’s a lot of creativity to discover in the Electro-Harmonix Attack Decay effects pedal.

VIDEO

FEATURES

• Volume envelope manipulation pedal with attack and decay controls
• Mono mode applies one volume envelope to your signal, which resets after each note you play
• Poly mode applies a volume envelope to each note or chord individually
• Create swells and pads, banjo-style plucks, bowed-instrument sounds, and much more
• Built-in Harmonix fuzz circuit adds harmonic excitement and enhances the envelope effect
• Effects loop allows you to add other pedals to be affected by the volume envelope
• Expression/CV input can control any knob you like
• Save up to 3 presets for instant recall

SPECIFICATIONS

• Pedal Type:Backwards/Reverse Effects, Harmonix Fuzz
• Analog/Digital:Analog
• Inputs:1 x 1/4" (instrument), 1 x 1/4" (return)
• Outputs:1 x 1/4" (main out), 1 x 1/4" (send)
• Other I/O:1 x 1/4" (expression)
• Power Source:9V DC power supply (included)
• Power Usage:150mA
• Height:2.25"
• Width:4.0"
• Depth:4.75"
