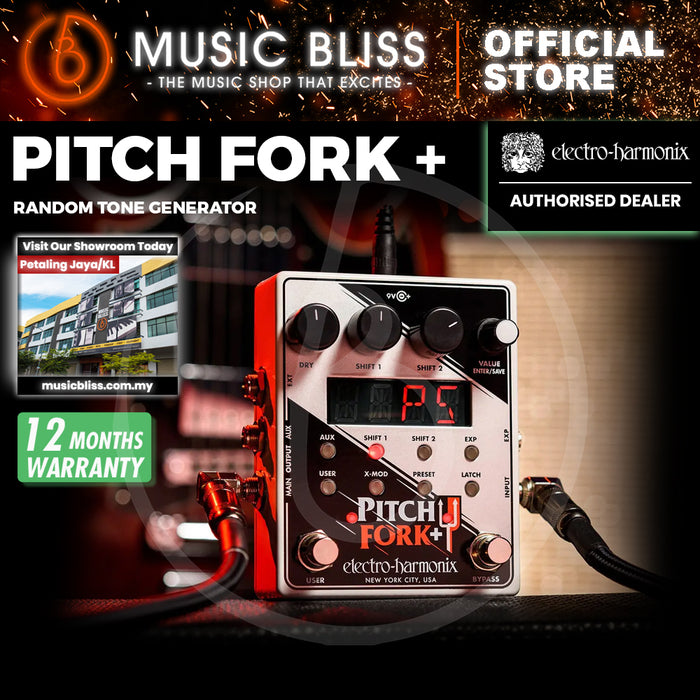

Electro Harmonix Pitch Fork+ Polyphonic Pitch Shift Pedal (Electro-Harmonix / EHX)

The Electro-Harmonix Pitch Fork+ offers powerful pitch shifting via two independent pitch shifting engines. Each engine can transpose over ±3 octaves and provides ±99 cents of detuning. This enables you to conjure up everything from subtle thickening to full-blown harmonies. You get full control over each engine, with dedicated volume controls for each pitch-shifted voice, plus your dry signal. The Pitch Fork+ delivers a never-ending array of compelling sonic textures, thanks to eight different operating modes. This polyphonic pitch shift pedal is versatile enough for any application, thanks to 10 unique factory presets, plus the ability to save and recall up to 100 programs. You also get dual outputs with multiple routing options, a user-programmable footswitch, and expression pedal and foot controller inputs. Pitch shifting is an infinitely useful effect. Once you integrate the Pitch Fork+ into your arsenal, you’ll wonder how you got along without it.

VIDEO

FEATURES

• Polyphonic pitch shift pedal with 2 independent pitch shifting engines
• Each engine can transpose over ±3 octaves and provides ±99 cents of detuning
• 8 modes cover the full gamut of pitch shift effects
• Dedicated volume controls for each pitch-shifted voice, along with another for your dry signal
• 2 outputs with comprehensive routing enable amazing stereo effects with a 2-amp setup
• Includes 10 unique factory presets, plus the ability to save and recall up to 100 programs
• Latch and momentary modes give you plenty of versatility for bypassing the effect
• User-programmable footswitch (with its own dedicated LED) can be assigned to a variety of functions
• Expression input supplies real-time control over frequency, glissando, and volume
• External foot controller input for changing modes, loading presets, and more — hands free

SPECIFICATIONS

• Pedal Type : Pitch Shift
• Analog/Digital : Digital
• Effects : 2 x Pitch Shift Engines, X-MOD Cross Modulation, 11 x Shift Intervals, 3-octave Transpose
• Presets : 10 x Factory Presets, Save/Recall 100 Programs
• Inputs : 1 x 1/4"
• Outputs : 1 x 1/4" (main out), 1 x 1/4" (aux)
• Other I/O : 1 x 1/4" (expression/CV control), 1 x 1/4" (external switching)
• Bypass Switching : Buffered
• Features : Latch/Momentary Switching Modes
• Power Source : 9V DC power supply (included)
• Power Usage : 30mA
• Batteries : 1 x 9V
• Height : 2.1"
• Width : 3.75"
• Depth : 4.75"
