Klark Teknik DN32-MADI MADI Expansion Module with up to 32 Bidirectional Channels (DN32MADI / DN32 MADI)
MADI devices are widely used in a broad range of pro audio applications including permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels. DN32-MADI features optical duplex SC-plugs (IEC874-19) to connect with MADI devices using multimode optical-fibre cable. Klark Teknik has tested multimode cable connections of 500 metres in length successfully, and distances of up to 2 km may be possible.
FEATURES
- MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles
- Up to 32 bidirectional channels @ 48 kHz sample rate
- Operates up to 500 m over optical fibre link and 100 m over coaxial copper link

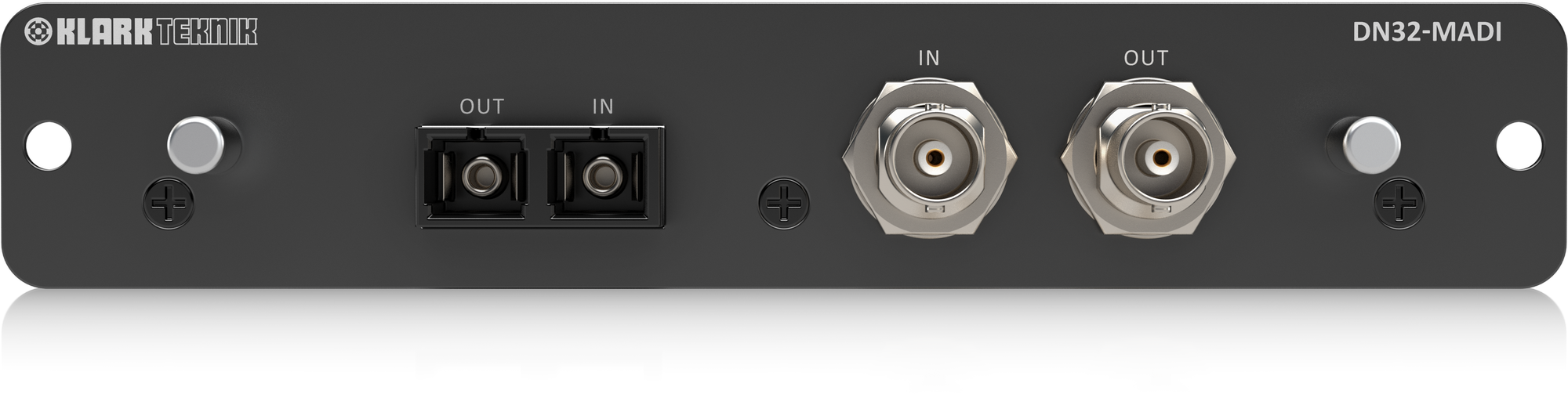

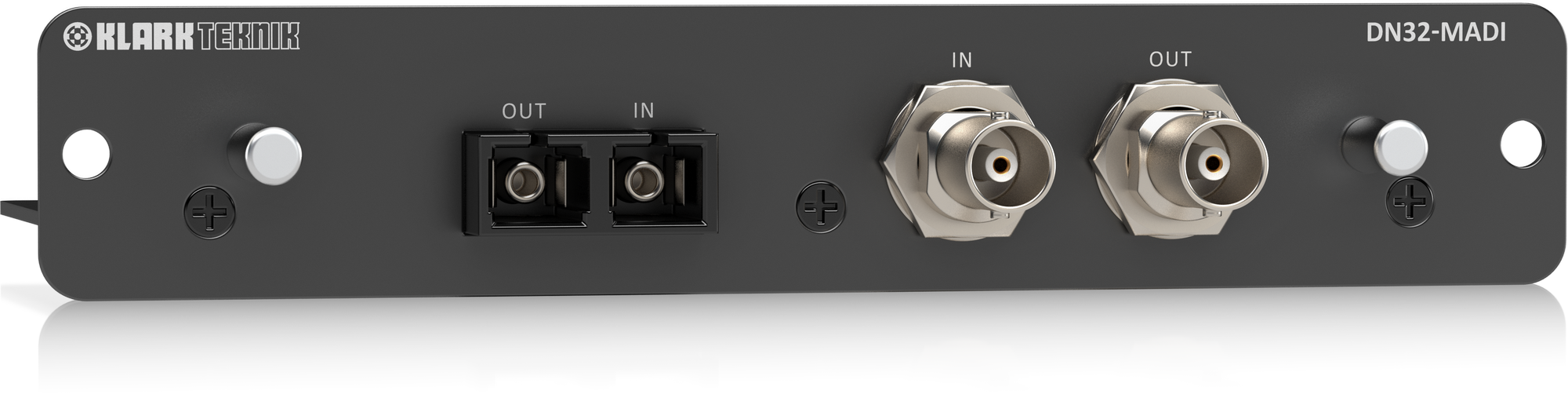

- Optical transmission on SC-Duplex* connector
- Copper transmission on 75 ohm coaxial BNC connectors
- Dual-redundant operation with failover from optical to copper connections
- Operates as either MADI clock master or MADI clock slave
- Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels
Dimension Packaging Weight : 0.6 kg
