Midas DN4816-I StageConnect Interface


The Midas DN4816-I provides a dead-simple solution for piping 16 channels of analog audio over a StageConnect network. This bus-powered interface features 16 line-level analog inputs, plus two Ethernet ports: one to connect to Ultranet receivers, and a second to output the 16 onboard analog input channels. Configuring the DN4816-I for either Slave or Master mode is a piece of cake via a built-in Synchronization switch. You also get an LED that indicates a successful connection to a StageConnect network, plus a power LED and a USB port for firmware updates. Here at Music Bliss, we've used the DN4816-I to route analog console outputs to a personal monitoring system, as a stagebox for a digital console, and a whole host of other essential applications. If you want to route 16 channels of analog audio over a convenient Ethernet cable, the Midas DN4816-I is a great way to go.


FEATURES
  • A great solution for piping 16 channels of analog audio over a StageConnect network

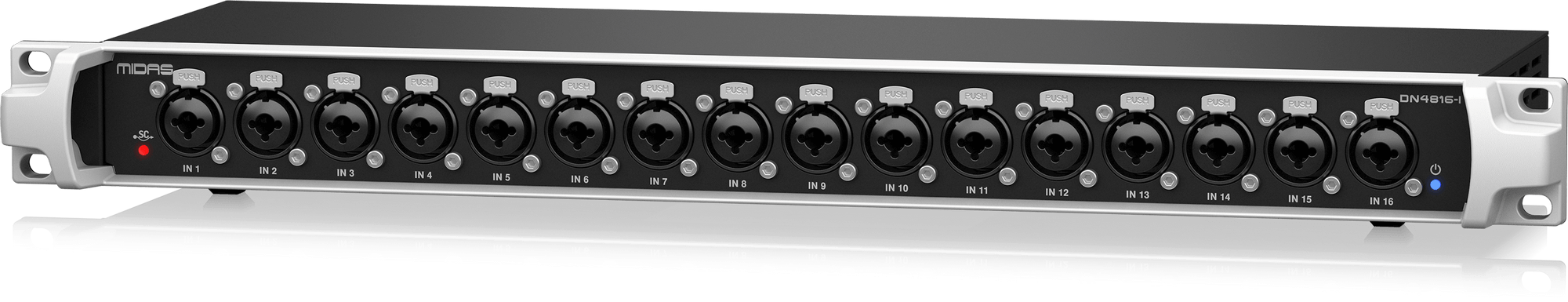

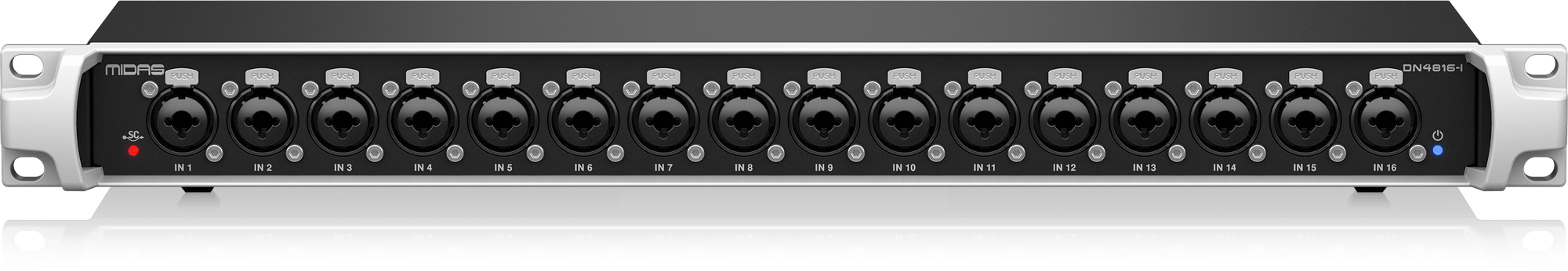

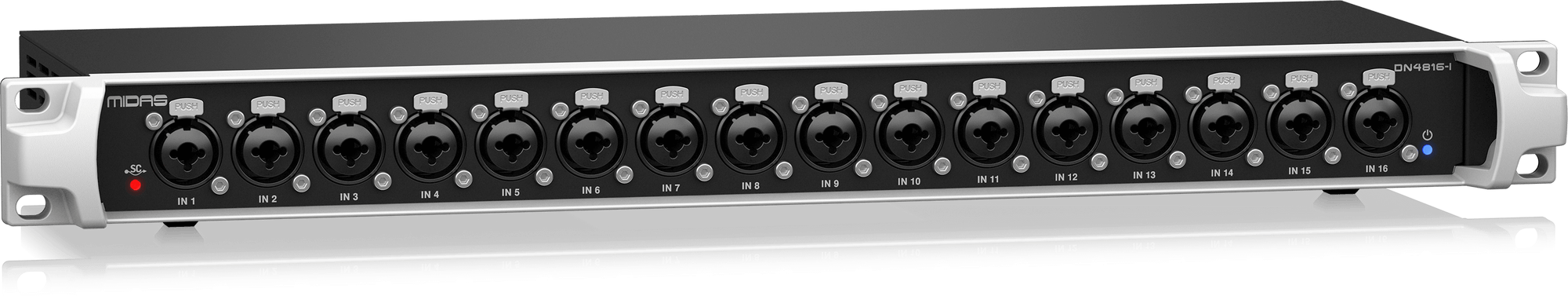

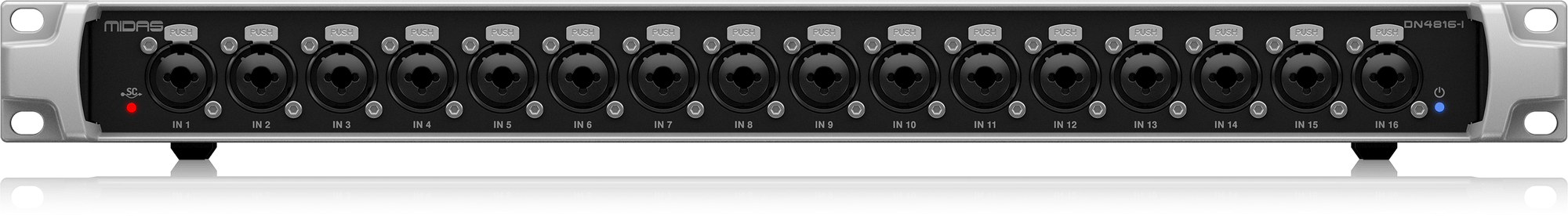

  • 16 XLR/TRS combination inputs accommodate line-level analog signals

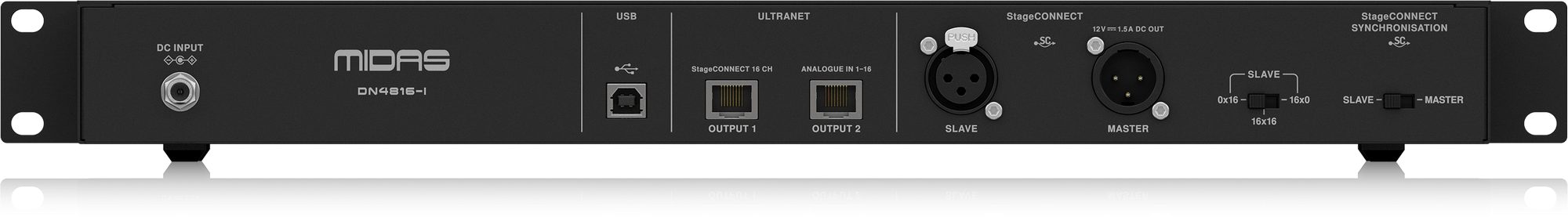

  • 2 Ethernet ports: 1 to connect to Ultranet receivers; 1 to output the 16 onboard analog input channels
  • Built-in Synchronization switch configures the unit for Slave or Master mode
  • Status LED indicates a successful connection to a StageConnect network
  • Power LED signals whenever power is received from an external adapter or via a StageConnect bus
  • USB port makes firmware updates a breeze

SPECIFICATIONS
  • Type:Stage Box
  • Compatibility:Midas ULTRANET, StageConnect
  • Channels:32 x 16
  • Inputs - Line:16 x XLR-1/4" combo
  • Data I/O:2 x StageConnect XLRs, 2 x RJ45
  • USB:1 x Type B
  • Rackmountable:Yes, 1U
  • Power Source:12V DC Power Supply
  • Height:1.9"
  • Depth:6.7"
  • Width:19"
  • Weight:4.9 lbs.

Dimension Packaging Weight : 6.0 kg
