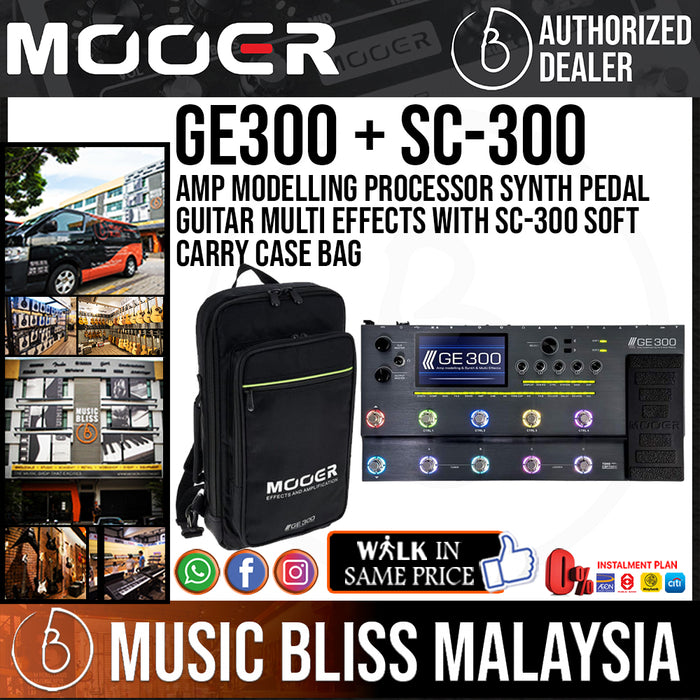

Mooer GE300 Amp Modelling Processor Synth Pedal Guitar Multi Effects With Mooer SC-300 Soft Carry Case Bag (GE-300)

The GE300 from MOOER is the flagship multi-effect instrument processor. By combining the well-received Micro Preamp series, TONE CAPTURE instrument matching technology, tri-voice polyphonic synthesizer module, and a wide-range of guitar effects and tools, the GE300 embellishes every single motive for creation from your mind with nuanced details. The GE300 contains dual-DSP processors delivering the fastidious detailed characterizes of every delay, reverb, modulation or amp model inside. Thanks to the intuitive and simple UI, controls, and connection ports, the GE300 is an all-in-one working station for musicians whether in a live situation, at home, or in the studio.

PROMOTION

Mooer SC-300 Soft Carry Case Included

FEATURES

• 108 high-quality AMP models
• 43 IR based factory speaker cab models
• Tri-voice polyphonic synthesizer module
• TONE CAPTURE for sampling the tonal characteristics of guitar, amplifier, stomp box, and cabinet to create new digital preamp models, new impulse response files.
• 164 high-quality effects
• Programmable FX loop with optional signal chain routing.
• Stereo outputs (1/4’’ and XLR) with independent signal chain routing.
• MIDI IN/MIDI OUT/THRU with easy mapping and external ctrl switching to control your other pedals and amps.
• PROGRAMMABLE footswitches with user selectable LED colors and assignable functions, allowing complete user customization of control scheme.
• Direct, low latency USB audio.
• 30 minutes loop station with undo/redo, direct dubbing, reverse + 1/2 speed effects. Looper sessions can be stored and backed up for import /export of audio files.
• High-precision programable TUNER will make sure you’re in-tune at all times.

SPECIFICATIONS

• Algorithm
  - No. of Effect Blocks : 15
  - No. of Effect Types : 317
  - Patches : 256 (Preset)
  - IR Loading : 20 slots
  - IR Format : .wav
  - IR Sampling Rate : 44.1kHz（Full Sampling rate supported）
  - IR Sampling Accuracy : 24 Bits
  - IR Sampling Points : 512 / 1024 / 2018 Points


• Input - Input
  - Type : 1/4” unbalanced mono audio jack
  - Impedance : Guitar: 1Meg ohm; Line: 10k ohm
  - Maximum Input Level : +12 dBu


• Input - Return
  - Type : 1/4” unbalanced mono audio jack X 2
  - Impedance: 1Meg ohm
  - Maximum Input Level: +12 dBu


• Input - Aux In
  - Type : 1/8” unbalanced Stereo audio jack
  - Impedance : 100k ohm
  - Maximum Input Level : +12 dBu


• Input - A/D Conversion
  - Sampling Rate : 44.1 kHz
  - Sampling Accuracy : 24bit
  - Dynamic : 114 dB
  - Frequency : 20Hz – 20kHz, +0 / -1 dB


• Output - Output
  - Type : 1/4” unbalanced mono audio jack X 2
  - Impedance : 470 ohm
  - Maximum Output Level : +12 dBu


• Output - XLR Output
  - Type : XLR balanced output X 2
  - Impedance : 300 ohm
  - Maximum Output Level : +18 dBu


• Output - Send
  - Type : 1/4” unbalanced mono audio jack X 2
  - Impedance : 100 ohm
  - Maximum Output Level : +12 dBu


• Output - Phones
  - Type : 1/4” unbalanced Stereo audio jack
  - Impedance : 16 ohm
  - Maximum Output Level : +12 dBu


• Output - D/A Conversion
  - Dynamic : 114 dB
  - Frequency : 20Hz – 20kHz, +0 / -1 dB


• Others - MIDI
  - MIDI in/out (thru) : 5 Pin Female Connector


• Others - USB
  - Type: USB Type B
  - USB Audio: USB 2.0, 2 in 2 out, 44.1kHz, 24bit


• Others - EXP2 External Expression Jack
  - Type: 1/4” TRS jack
  - Impedance: 10k – 100k ohm


• Power Supply
  - DC 9V, 3A
