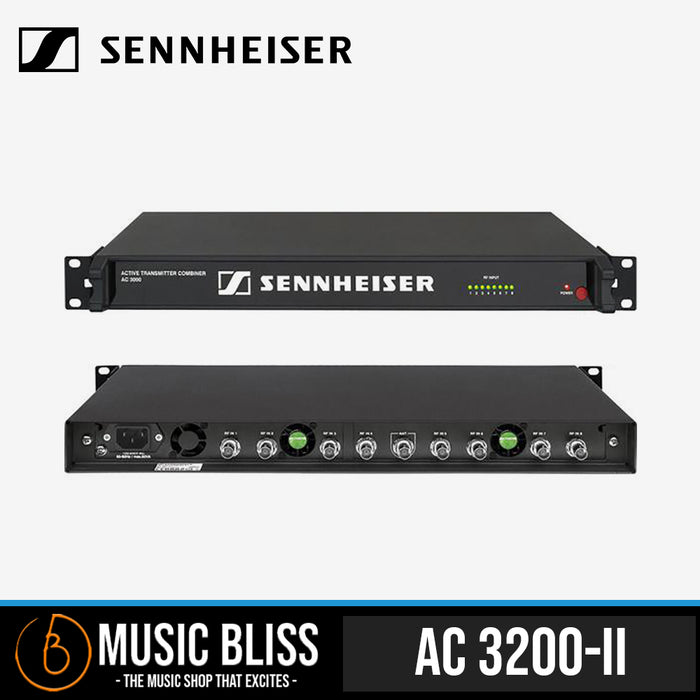

Sennheiser AC 3200-II Active 8-channel Antenna Combiner (AC3200II / AC3200)

Sennheiser wireless products give you the reliability you need onstage, on the worship platform, in the meeting room, or any other application that requires mobility plus clean, clear, intelligible sound. There's a reason so many touring professionals prefer Sennheiser: they know they can count on these wireless products day-in and day-out. From handheld, mic-based transmitters to bodypack units, from versatile rackmountable receivers to premium-quality accessories, Sennheiser puts a commitment to quality in every wireless product they make.

FEATURES

• Active 8-channel 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
• Significant improvement of RF performance for multi-channel systems
• Broadband RF design to cover the UHF frequency range from 500-870 MHz
• Maximum input power of 250 mW

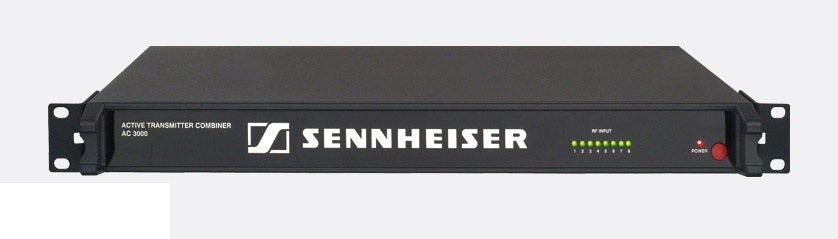

• LEDs on the front show whether a signal is present at the RF input
• Compatible with SR 2050XP IEM, SR 2000XP IEM, SR 300 IEM G3, and legacy EW and 3000 Series monitor transmitters

SPECIFICATIONS

• Impedance : 50 ohms
• Dimensions : 436 x 215 x 44 mm
• Weight : approx. 4 kg
• Attenuation : 0 dB (+/- 1dB)
• Power consumption : max. 90 W
• Operating temperature : -10 °C to +45 °C
• RF frequency range : 500 – 870 MHz
• Power supply : 12 V DC

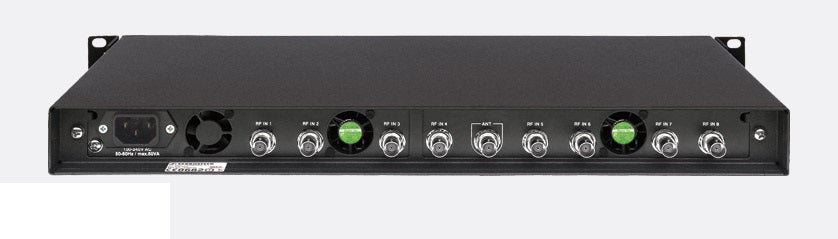

• Antenna connector : BNC
• Current consumption : max. 7.5 A
