Product Description

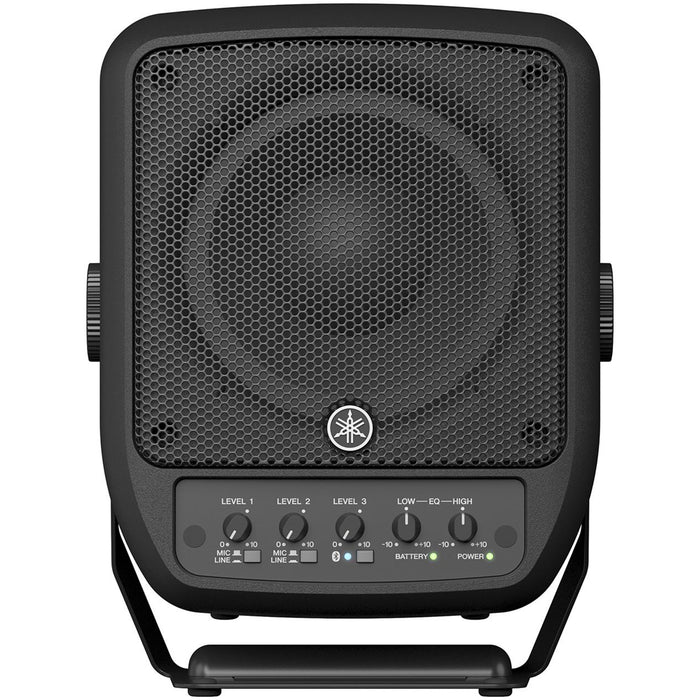

Yamaha StagePas 100BTR Portable PA System (STAGEPAS100BTR)
Yamaha StagePas 100BTR Portable PA System (StagePas 100)
Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery
FEATURES
- 100 W Class-D amplifier
- 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
- 3-channel mixer (2 monaural mic/line + 1 line)
- Equipped with a 2-band master EQ
- Compatible with Hi-Z input (Channel 2 only)
- Equipped with mix-out
- Carrying handle doubles as an adjustable stand
- Compatible with audio accompaniment over Bluetooth
- Optional carrying bag (BAG-STP100) available for convenient transport
- Internal lithium-ion battery
SPECIFICATIONS
- Outline
- Type
- 2-way Bi-amp Powered Speaker with mixer
- I/O
- Inputs
- INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
- Outputs
- OUTPUT: XLR3-32 (INPUT 1-3 mix)
- Bluetooth
- Ver.5.0, A2DP (SBC, AAC), Class 1
- Mixing capability
- Mixing channels
- 3
- Input channel functions
- Hi-Z: CH2
- Output channel functions
- 2 Band EQ
- General specifications
- Speaker type
- Coaxcial speaker with compression driver
- Frequency range (-10dB)
- 70 Hz – 20 kHz
- Coverage area
- H90ﾟ x V90ﾟ
- Crossover
- 1.8 kHz (FIR-X)
- Maximum output level (1m; on axis)
- 120 dB SPL *1
- Components
- LF
- 6.5" Cone, 1.7" voice coil
- HF
- 1" throat compression driver, 1.4" voice coil
- Amplifier class
- Class-D
- Power rating
- Dynamic
- 100 W (LF: 93 W, HF: 7 W)
- Cooling
- Natural convection (no fan)
- Power consumption
- 10 W (Idle), 30 W (1/8 power)
- Power requirements
- 100-240 V 50/60 Hz
- Battery
- Type
- Rechargeable Lithium ion battery pack
- Capacity
- 60 Wh
- Operating Time
- Maximum 6 hours, 1/16 power continuous 5 hours
- Charging Time
- Approx. 2.5 hours
- Cabinet material
- Plastic (PP)
- Handle
- Bottom x1 (Rotatable)
- Flying and mounting hardware
- 1 × 3/8", depth 12 mm (center of handle)
- Dimensions (W x H x D)
- 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
- Weight
- 5.5 kg (12.1 lbs), without AC adaptor
- Accessories
- Power cord x 1, AC adaptor (PA-500) x 1
- Options
- Carrying bag: BAG-STP100
Dimension Packaging Weight : 9.0 kg
